Part Number SF603ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 3mm
Outer diameter(D) 9mm
Flange OD 10.5mm
Width(B) 5mm
Flange thickness 1mm
radius 0.15mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
shields material Stainless steel 304
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 6
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.61
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 230N
Static Load Rating (Cor) 151 N

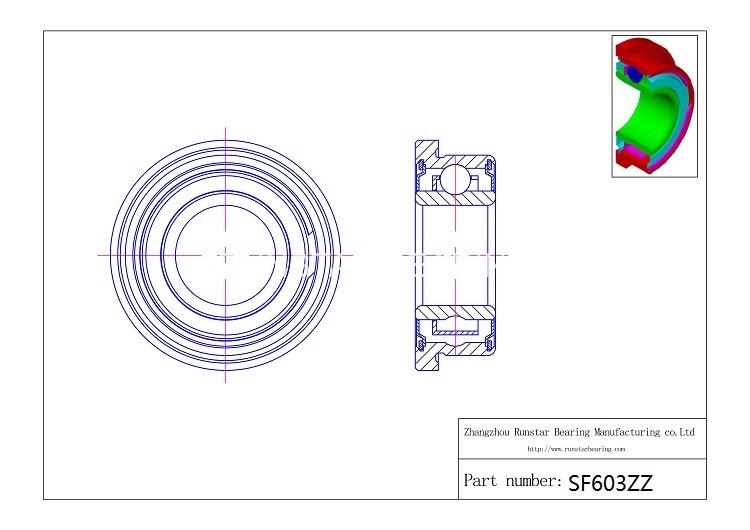

ball bearings sizes chart sf603zz d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SF603zz SRF-930zz SFL603zz SF603zz
