Part Number S609
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 9mm
Outer diameter(D) 24mm
Width(B) 7 mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 3.175mm
BALL QTY 8
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 14.7
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 2097 N
Static Load Rating (Cor) 865 N

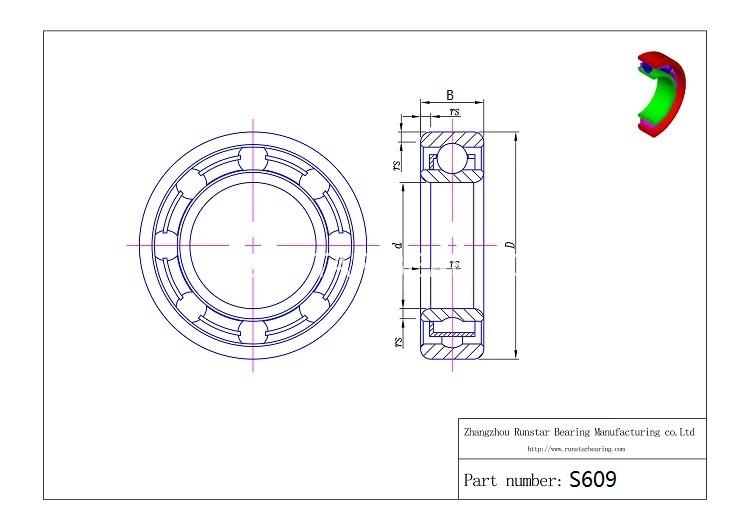

ball bearings manufacture s609 d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
S609
