bearings factory SR166

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SR166
Bearing type Ball
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 3/16″︱4.762mm
Outer diameter(D) 3/8″︱9.525mm
Width(B) 1/8″︱3.175mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 1.588mm
BALL QTY 8
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 0.81
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 605 N
Static Load Rating (Cor) 218  N

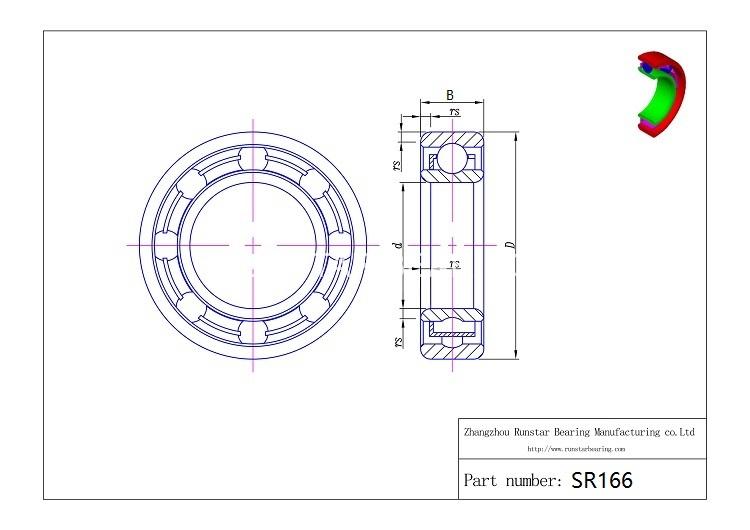

bearings factory sr166 d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SR166 SR1-6632 SR166 SX3/16 S4763B SR166
