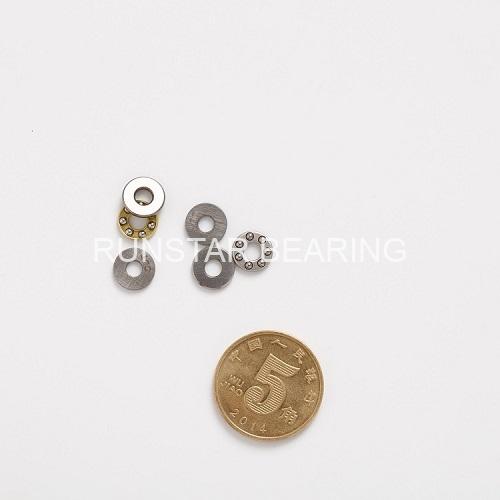

thrust bearing F2.5-7

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F2.5-7
Bearing type BALL
Structure THRUST BALL
Load Direction AXIAL
Raceway type flat raceway
bore diemater of shaft washer(d) 2.5mm
Outer diameter of housing washer(D) 7mm
bore diemater of housing washer(d1)  2.7mm
Outer diameter of shaft washer(D1)  6.8mm
thickness( H) 3.5 mm
radius 0.1mm
material of washers Chrome steel 52100(Gcr15)
material of cage bronze or stainless steel
ball material Chrome steel 52100(Gcr15)
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.3 mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.9
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr)   756   N
Static Load Rating (Cor)     476 N
thrust bearing f2.5 7 d 1

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F2.5-7
