| Part Number | F8-16 |
| Bearing type | BALL |
| Structure | THRUST BALL |
| Load Direction | AXIAL |
| Raceway type | flat raceway |

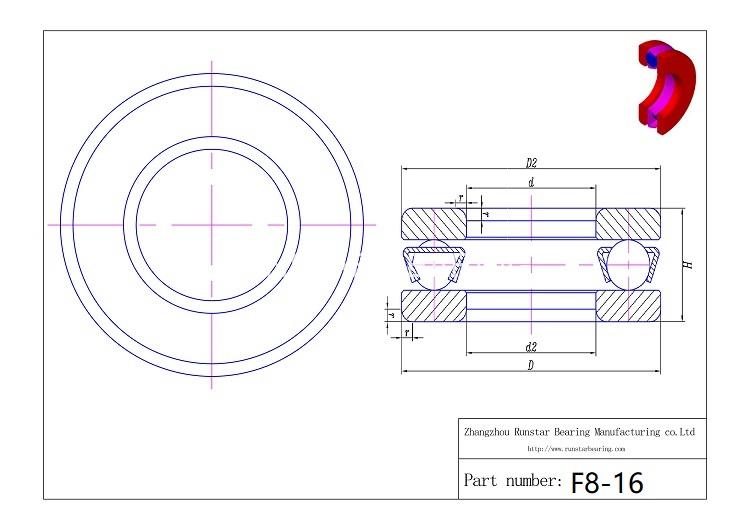

| bore diemater of shaft washer(d) | 8mm |
| Outer diameter of housing washer(D) | 16mm |
| bore diemater of housing washer(d1) | 8.2mm |
| Outer diameter of shaft washer(D1) | 15.8 mm |
| thickness( H) | 5mm |
| radius | 0.2mm |
| material of washers | Chrome steel 52100(Gcr15) |
| material of cage | bronze or stainless steel |
| ball material | Chrome steel 52100(Gcr15) |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 3mm |
| BALL QTY | 9 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 5 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 597 N |
| Static Load Rating (Cor) | 627 N |

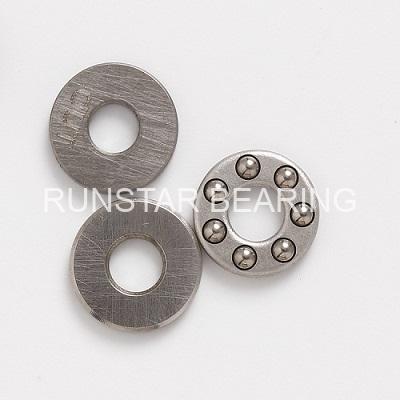

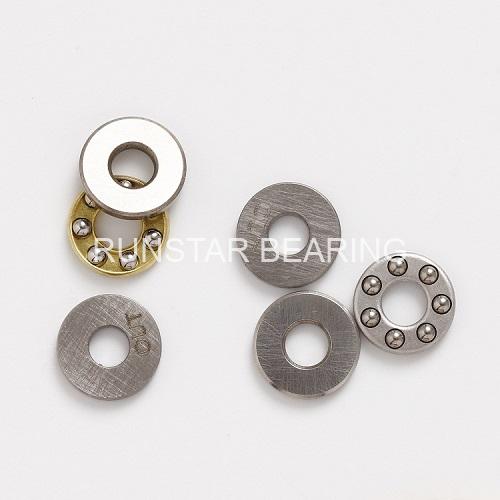

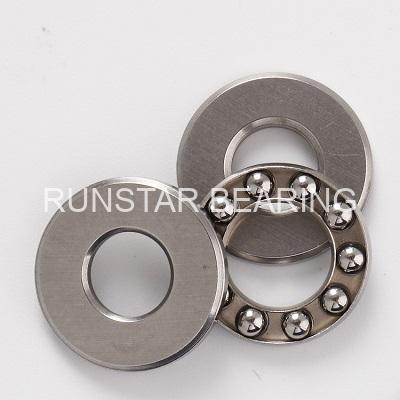

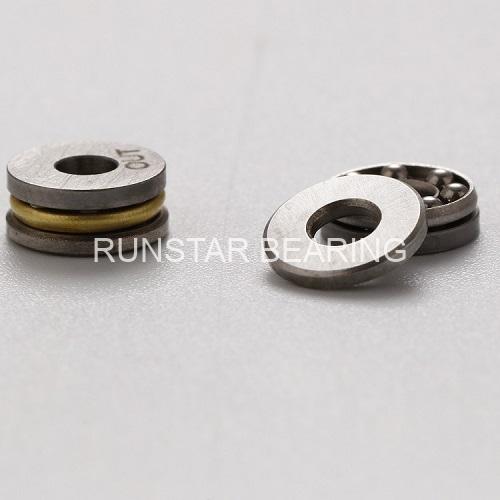

Miniature thrust bearing are one of particular separable ball bearings, they are composed of shaft washer,housing washer and steel balls with cage. And shaft washer is designed to fix the shaft, and housing washer is designed to fix the parts outside the shaft. Compared with miniature ball bearings, miniature thrust bearing can not support radial load or high speed, it is only designed to support axial load and mediunm speed in application.
8mm Thrust Bearing is referred miniature thrust bearings with a bore diameter 8mm in Runstar. F8-16 is belong to 8mm thrust bearings in Runstar, it is with a bore diemeter 8mm,a outer diameter 16mm and a width 5mm,and it can support dynamic load rating 3933 N. we can make the 8mm thrust bearings with chrome steel or stainless steel, as well as hybrid ceramic at request.
Zhangzhou Runstar Bearings Manufacturing Co.;Ltd is a professional thrust bearings manufacturer since 2007,certified ISO9001:2015. Runstar has more than 15 years in designing and manufacturing thrust bearings for industries, customized thrust bearings are accepted in Runstar.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| F8-16 |
