| Part Number | SMR95 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Open |
| Bore diameter(d) | 5mm |
| Outer diameter(D) | 9mm |
| Width(B) | 2.5mm |
| material | Stainless steel 440C(9Cr18) |
| ring material | Stainless steel 440C(9Cr18) |
| cage material | Stainless steel 304 |
| ball material | Stainless steel 440C(9Cr18) |
| Rubber material | Stainless steel 304 with rubber |
| Grade | ABEC-1 |
| Clearance | C0 |
| BALL SIZE(mm) | 1.2mm |
| BALL QTY | 8 |
| lubrication | grease or oil |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.54 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 366N |
| Static Load Rating (Cor) | 135 N |
Stainless Steel Bearings are also called stainless steel ball bearings. Compared with ordinary ball bearing with chrome steel, Stainless steel bearings can keep from corrosion caused by some acids or moisture,and stainless steel bearings have obvious advantages of stable operation, low noise, low magnet, wide application, excellent anti-corrosion and anti-rust properties.

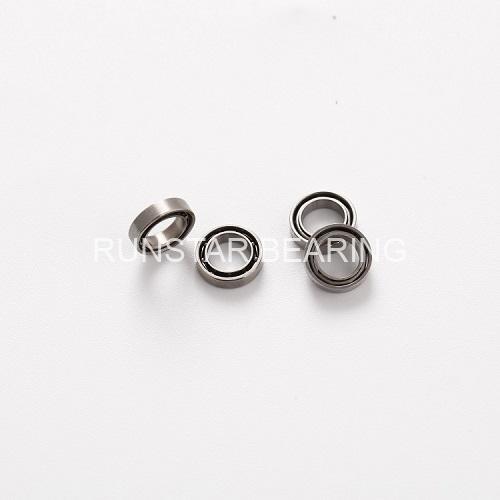

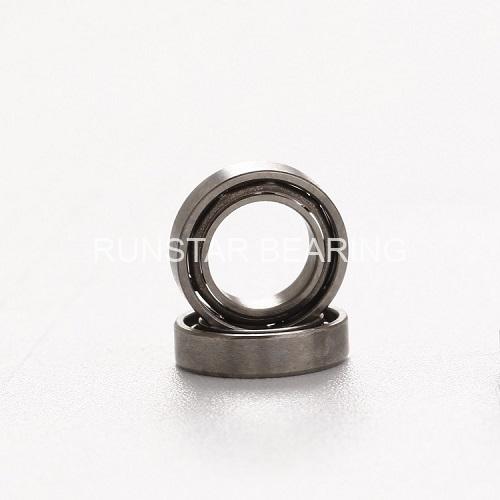

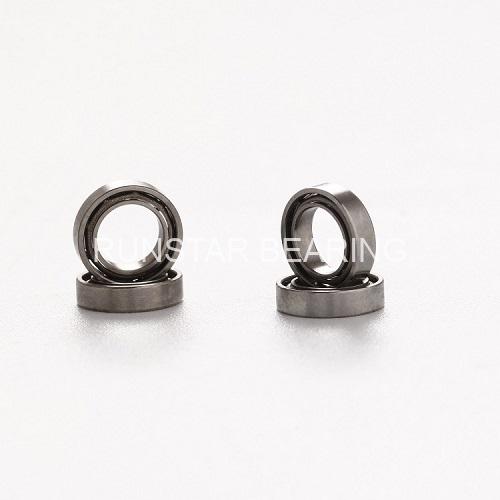

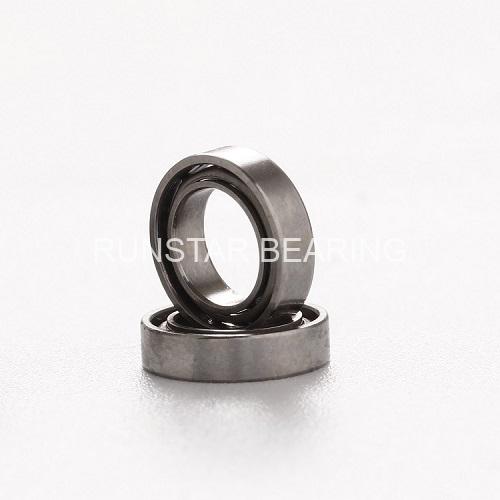

The item SMR95 is a metric stainless steel bearings with open type, with a bore diameter 5mm,a outer diameter 9mm and a width 2.5mm,and it can support the dynamic load rating 431 N. It can be widely uded in fishing reel and food processing machinery etcs.
Runstar is a professional stainless steel bearings manufacturer in China,certified ISO9001:2015. we design and make stainless steel bearings with a grade from ABEC-1 to ABEC-9, stainless steel bearings with hybrid ceramic balls are available in Runstar. All stainless steel bearings from Runstar are strictly controlled under ISO9001:2015,with RoHs and REACH compliance.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| SMR95 | SL-950 | SMR95 |
