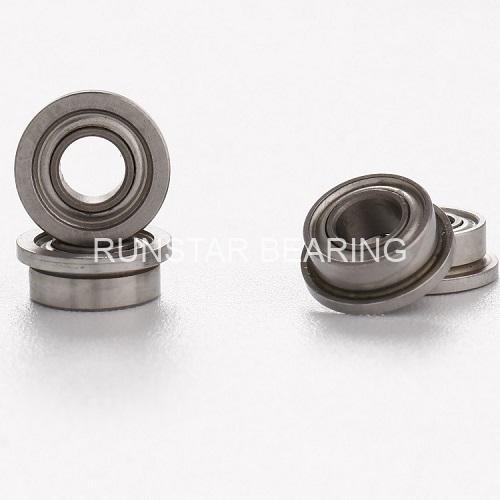

miniature deep groove ball bearings SFR2-6ZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SFR2-6ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 1/8″︱3.175mm
Outer diameter(D) 3/8″︱9.525mm
Flange OD(Df) 0.422″︱10.7188mm
Width(B) 0.1406″︱3.571mm
Flange thickness (Bf) 0.031″︱0.7874mm
radius (rs) 0.15mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
shields material Stainless steel 304
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.35
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 542N
Static Load Rating (Cor) 182N
miniature deep groove ball bearings sfr2 6zz d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SFR2-6zz SRIF-618zz SFR2-6zz
