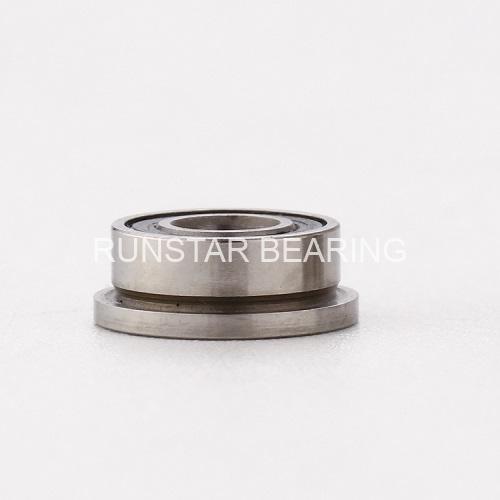

miniature bearing SF693-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SF693-2RS
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 3mm
Outer diameter(D) 8mm
Flange OD 9.5mm
Width(B) 4mm
Flange thickness 0.9mm
radius 0.15mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
shields material Stainless steel 304
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.2mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.94
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 474N
Static Load Rating (Cor) 144 N
miniature bearing sf693 2rs d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SF693-2RS SRF-830-2RS SFL693-2RS SFX3-2RS SF693-2RS SF693-2RS
