ball bearing factory SMR83

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SMR83
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 3mm
Outer diameter(D) 8mm
Width(B) 2.5mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 1.2mm
BALL QTY 7
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 0.51
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 336 N
Static Load Rating (Cor) 113 N

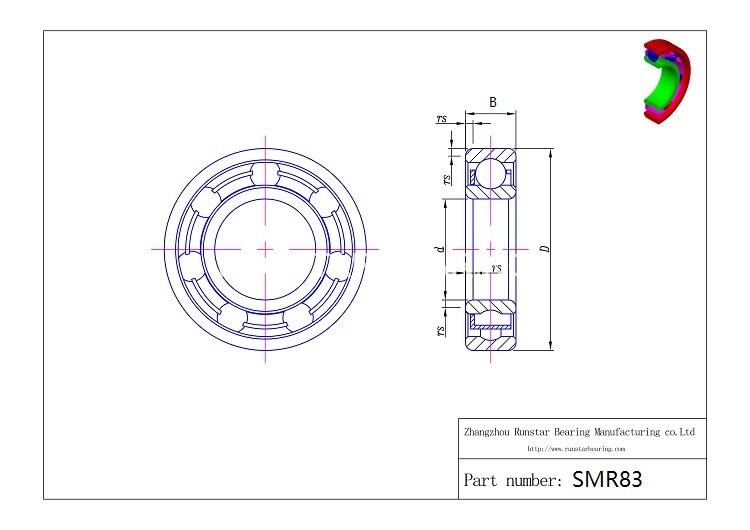

ball bearing factory smr83 d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SMR83 SR-830Y52 SX3
