Part Number FR2-5-2RS EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 1/8″︱3.175mm
Outer diameter(D) 5/16″︱7.938mm
Flange OD(Df) 0.3590″︱9.1186mm
Width of outer diameter(C) 0.1406″︱3.571mm
Width of inner diameter(B) 0.1719″ | 4.366 mm
Flange thickness (Bf) 0.031″︱0.7874mm
radius (rs) 0.1mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
Rubber material 300 Series Stainless Steel with rubber
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 6
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.84
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 476N
Static Load Rating (Cor) 142N

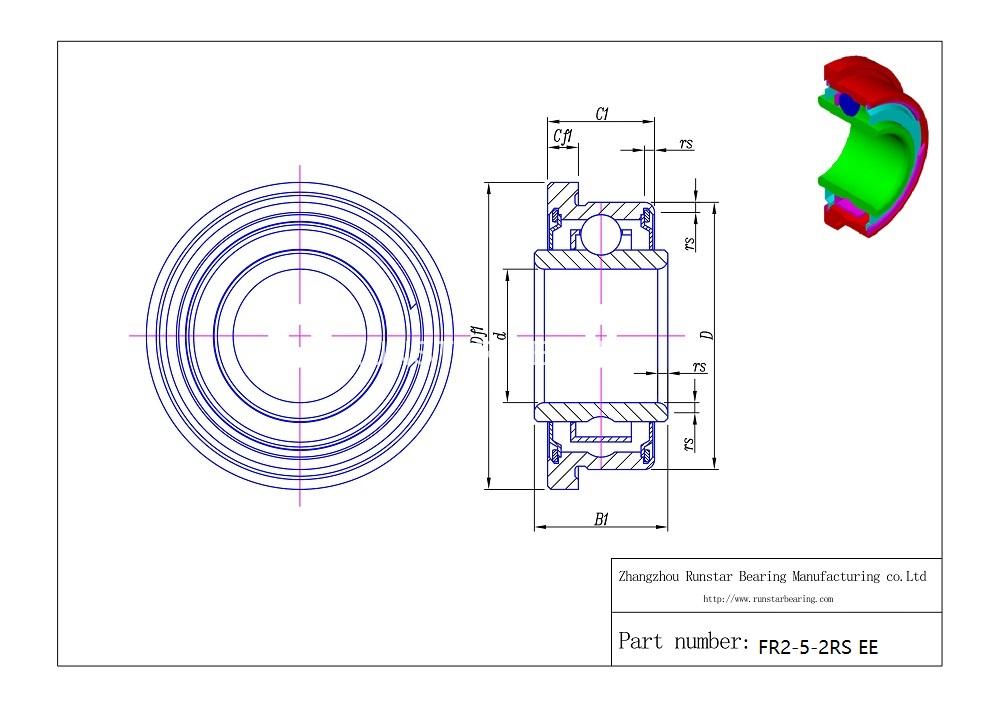

steel flange bearings fr2 5 2rs ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
FR2-5-2RS EE
