rc bearing 6700ZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 6700ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type shields
Bore diameter(d) 10mm
Outer diameter(D) 15mm
Width(B) 4mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.9
ISO9001:2015 PASSED
Dynamic Load Rating (Cr) 855 N
Static Load Rating (Cor) 435 N

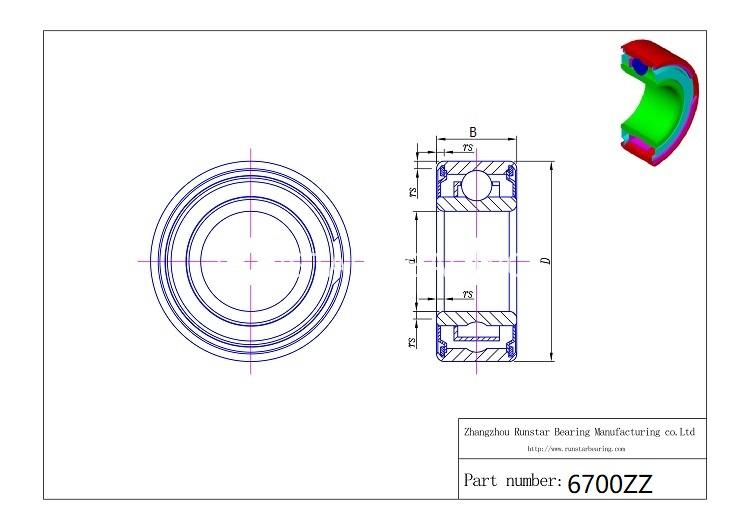

rc bearing 6700zz d

RC bearings are referred to bearings used in rc hobby. Runstar is a professional rc bearings manufacturer, we have been committed to the design and production of rc car  bearings with high precision and high speed, who has more then 15 year’s experience in designing and manufacturing rc bearings for rc models.

We have full size of rc bearings for choice, the item 6700ZZ is one of the most pop size of rc bearings, it is with a bore diameter 10mm,a outer diameter 15mm and a width 4mm, all rc bearings from Runstar has the followings characteristics.

1:full size of rc bearings available. Runstar design and manufacture full sizes of rc bearings with a bore size from 1mm to 20mm for rc models,it consists of metric miniature ball bearing, inch miniature ball bearing and miniature flange bearings.
2:High Precision to meet all needs in quality. Runstar’s RC Bearings have different grade from ABEC-1 to ABEC-7 for choice.
3:High speed . It is one of the most basic requirements of rc bearings. RC Bearings with high speed can give full play to the performance of rc models.
4:Long life. The long-time rotation with high speed is a great test for the service life of the rc bearings. Runstar’s rc bearings are strictly controlled and managed from the selection of materials and each process to ensure that each rc bearing can be durable.
5:customized rc bearings is accepted.
