Precision Ball Bearing 6702zz

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 6702ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type shields
Bore diameter(d) 15mm
Outer diameter(D) 21mm
Width(B) 4mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 13
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 3.6
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 937 N
Static Load Rating (Cor) 582N

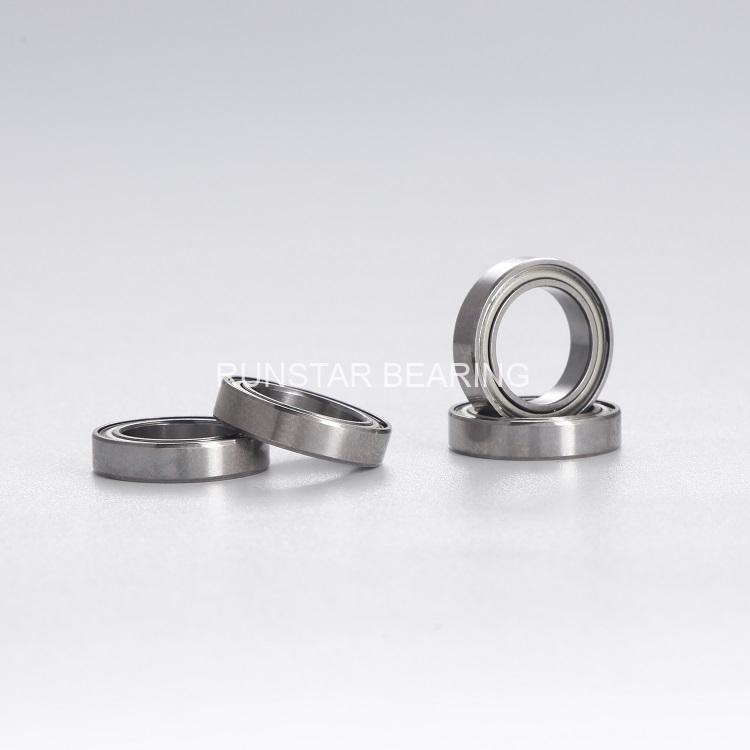

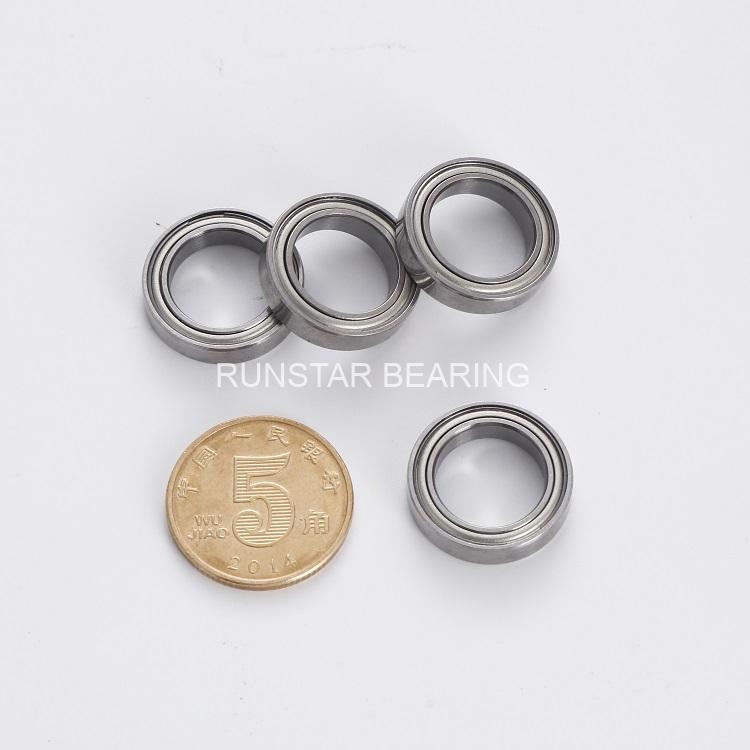

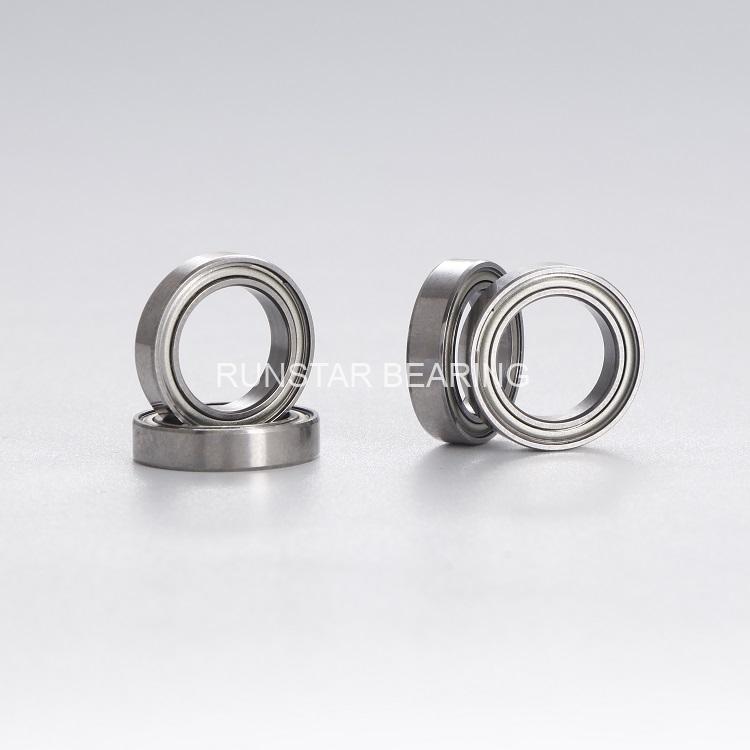

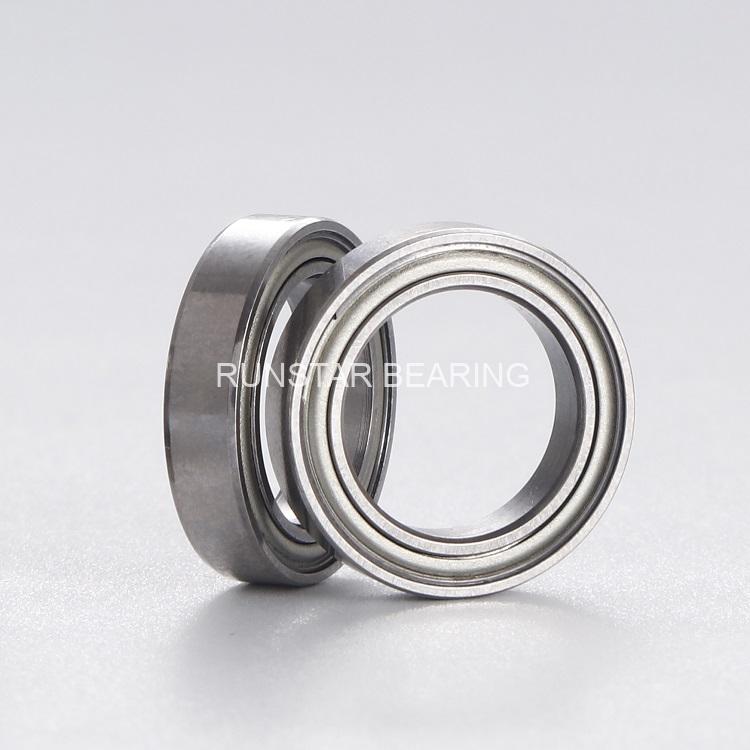

rc brushless motor bearing size 6701zz d

Ball bearings are belong to one of rollings bearings which are widely used in life, they are characterized by simple structure, low friction resistance, high speed and  easy to use etcs, they can be used for applications that support moderate radial load or both moderate radial and axial load at the same time, and also for moderate  axial load.they can operate at very high speeds for some special applications such as dental turbine,the speed can be RPM400000 or even more. The parts of ball bearings include inner ring,outer ring,retainer,balls,grease,shields or rubber seals. Compared with other type of rolling bearings, ball bearings are simple in structure and easy to achieve higher manufacturing accuracy, with a low manufacturing costs, so they are easy to be produced in large quantities and widely used. The rotational friction resistance of ball bearing is much smaller than other kinds of bearings, so the temperature generated by friction will be relatively low at the same speed. Therefore, ball bearing are widely used in high-speed equipmentThere are open type, with shields or rubber seals for ball bearing.Usually ball bearings are also called deep groove ball bearings.

precision ball bearings is referred ball bearings with a very high precision, Zhangzhou Runstar Bearings Manufacturing Co.;Ltd is the leader of precision ball bearings in China,we specilize in designing and manufactuing precision ball bearings from ABEC-1 to ABEC-9 for industries,the material could be chrome steel,stainless steel or hybrid ceramic balls for choices. All of our high precision ball bearings are strictly controled under ISO9001:2015.

The item 6702ZZ is one of pop precision ball bearings in Runstar, it is with a bore diemeter 15mm,a outer diameter 21mm,and a width 4mm.

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
6702ZZ
