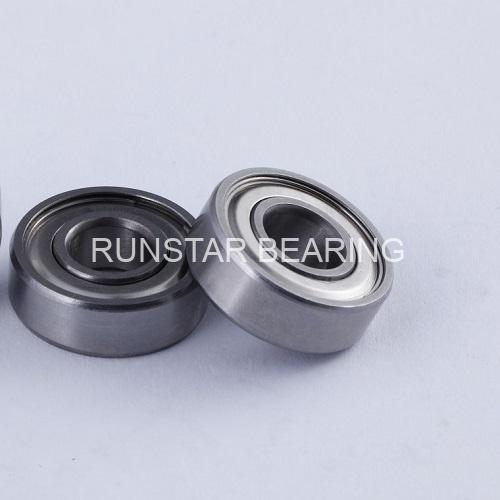

motor bearing types R4AZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number R4AZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 1/4″︱6.35mm
Outer diameter(D) 3/4″︱19.05mm
Width(B) 0.2188″︱5.558
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)  3.5mm
BALL QTY 6
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 10
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 1984 N
Static Load Rating (Cor)  716  N

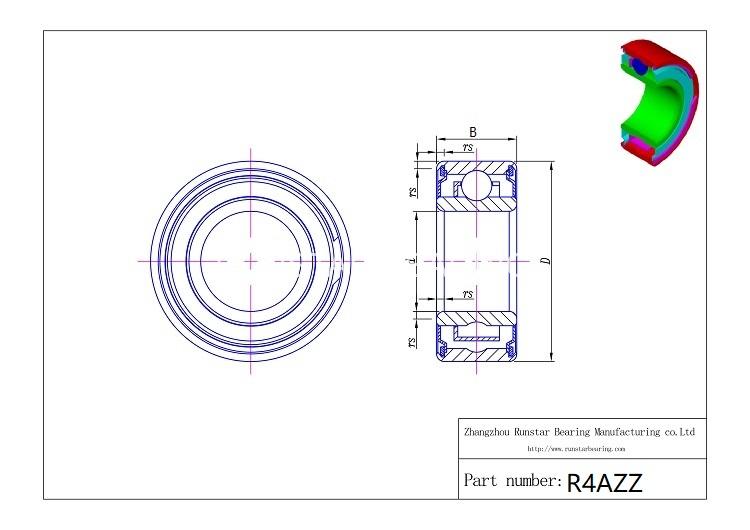

motor bearing types r4azz d 1

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
R4Azz RI-1214zz EE2zz R4Azz BR1/4zz R4Azz
