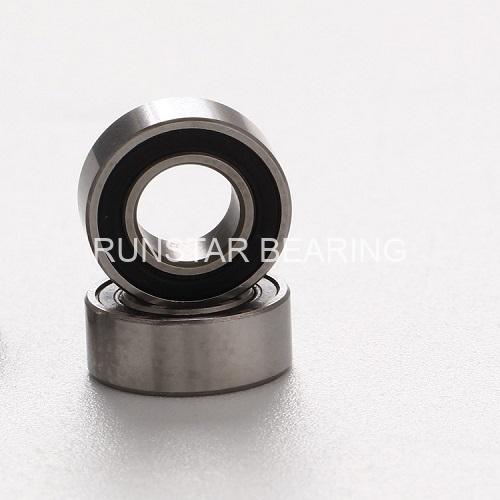

motor ball bearing R2-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number R2-2RS
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 1/8″︱3.175mm
Outer diameter(D) 3/8″︱9.525mm
Width(B) 5/32″︱3.967mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)  1.588mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.37
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr)  538N
Static Load Rating (Cor) 173N
motor ball bearing r2 2rs d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
R2-2rs R-2rs R2-2rs R2-2rs BR1/8A-2rs R2-2rs
