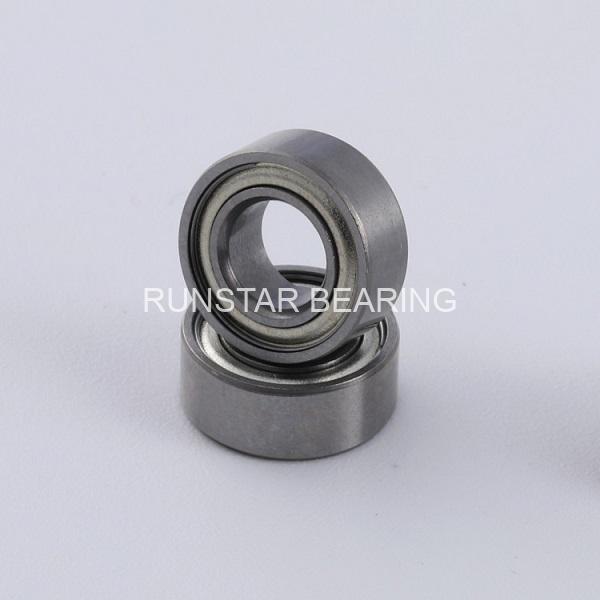

miniature bearings catalogue 604ZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 604ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 4 mm
Outer diameter(D) 12mm
Width(B)  4 mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(ABEC-3,5,7-9 available)
Clearance C0(C2,C3,C4,C5)
BALL SIZE(mm) 2 mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 2.34
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr)  814 N
Static Load Rating (Cor)  280   N
miniature bearings catalogue 604zz d

Runstar Bearing Manufacturing Co.;Ltd is a professional manufacturer of miniature ball bearing and thrust ball bearing,we have passed ISO9001:2015,Reach and RoHs.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
604 R-1240 604 604 604
