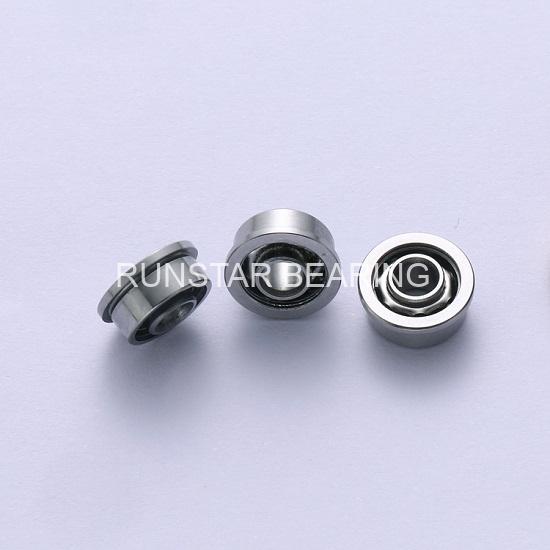

mini flange bearings FR1-5 EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number FR1-5 EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 3/32″︱2.381mm
Outer diameter(D) 5/16″︱7.938mm
Flange OD(Df) 0.3590″︱9.1186mm
Width of outer diameter(C) 0.1094″︱2.779mm
Width of inner diameter(B) 0.1406″︱3.571mm
Flange thickness (Bf) 0.023″︱0.5842mm
radius (rs) 0.15mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 6
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.67
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 471N
Static Load Rating (Cor) 142N
mini flange bearings fr1 5 ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
FR1-5 EE
