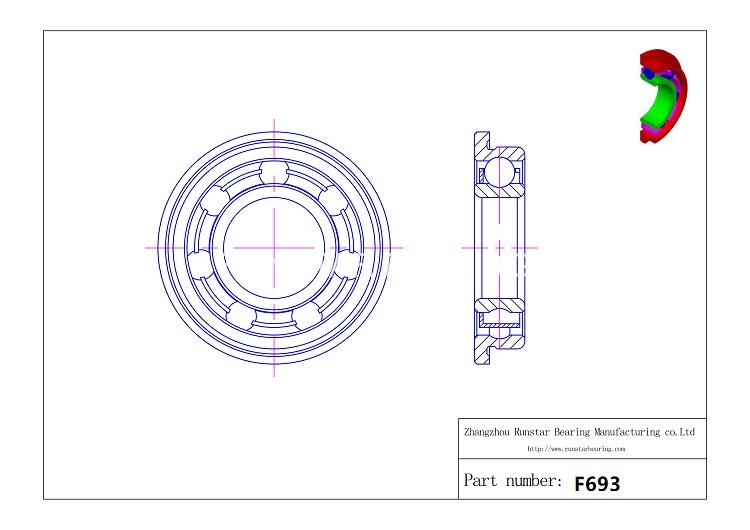

| Part Number | F693 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | OPEN |
| Bore diameter(d) | 3mm |
| Outer diameter(D) | 8mm |
| Flange OD | 9.5mm |
| Width(B) | 3mm |
| Flange thickness | 0.7mm |
| radius | 0.15mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1.2mm |
| BALL QTY | 7 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.6 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 474N |
| Static Load Rating (Cor) | 144 N |

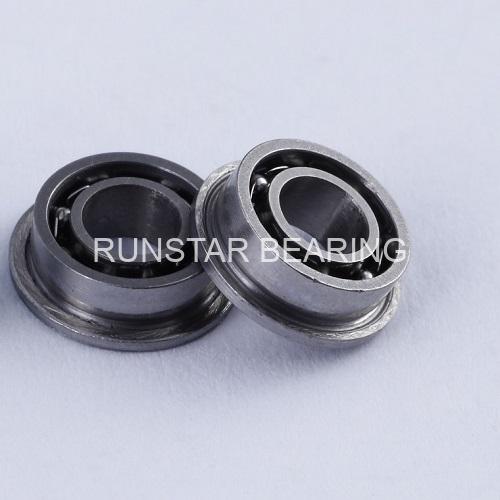

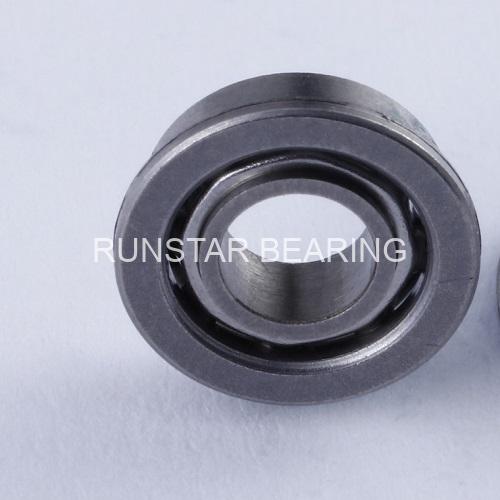

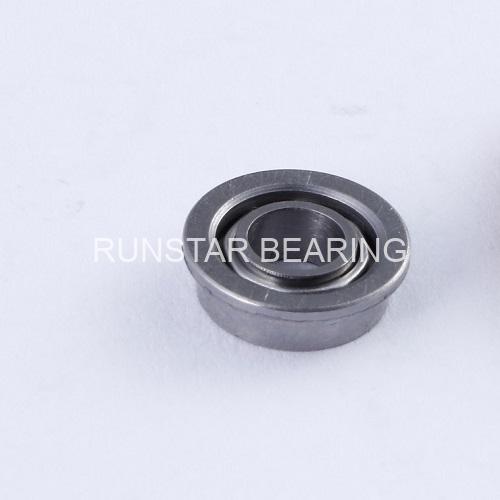

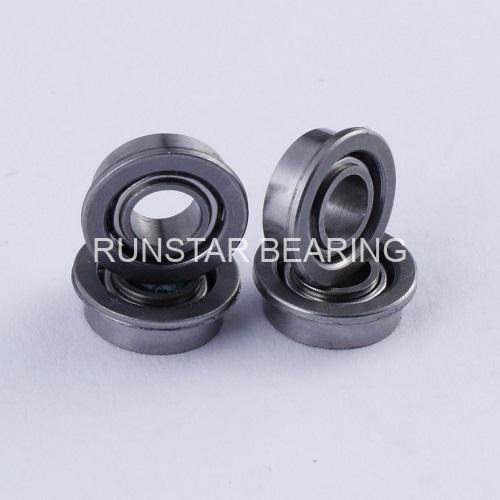

Mini flange bearings are also called flange miniature ball bearings or flange miniature bearings.There are metric series and inch series for mini flange bearings in Runstar. The item F693 is belong to metric mini flange bearings, it is open type, it is very easy for user to clean and replace grease for it.It is with a bore size 3mm,with a outer diameter 8mm,with a outer diameter of flange 9.5mm and with a width 3mm.Runstar is a professional mini flange bearings manufacturer in China.The material for mini flange bearings F693 can be Chrome steel(Gcr15) or stainless steel(440 or 420), hybrid ceramic is also available for choice. The mini flange bearings F693 are widely used in harvesting machinery, fermentation and extraction equipment, flexographic printing machine, plastic and rubber industry, bag making machine, film blowing machine, drilling and mining equipment, dry powder mixing equipment, plasma cutting machine, inspection and analysis equipment, seam equipment, magnetic separator, winding machine, stranding machine, air-cooled refrigerator, brazing machine, annealing furnace, special machine tool, rock dril etcs.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| F693 | RF-830 | FL693 | FX3 | F693 | F693 |
