micro thrust bearing F4-8M

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F4-8M
Bearing type BALL
Structure THRUST BALL
Load Direction AXIAL
Raceway type  groove raceway
bore diemater of shaft washer(d) 4mm
Outer diameter of housing washer(D) 8mm
bore diemater of housing washer(d1)  4.2mm
Outer diameter of shaft washer(D1)  7.8mm
thickness( H) 3.3mm
radius 0.15mm
material of washers Chrome steel 52100(Gcr15)
material of cage bronze or stainless steel
ball material Chrome steel 52100(Gcr15)
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.3mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.9
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr)  705 N
Static Load Rating (Cor) 526  N

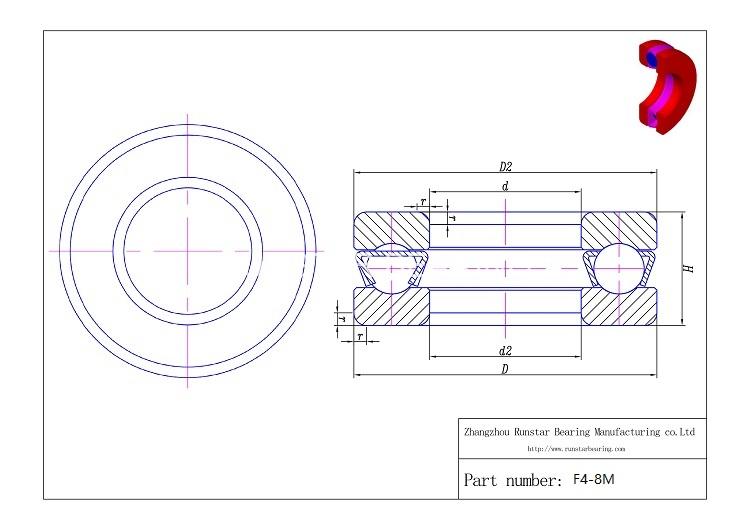

micro thrust bearing f4 8m d 1

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F4-8M
