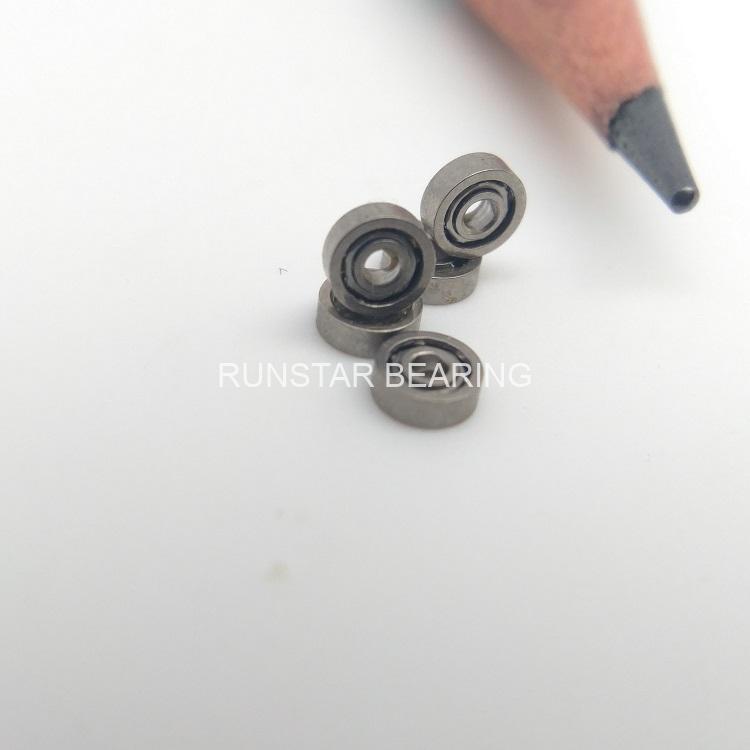

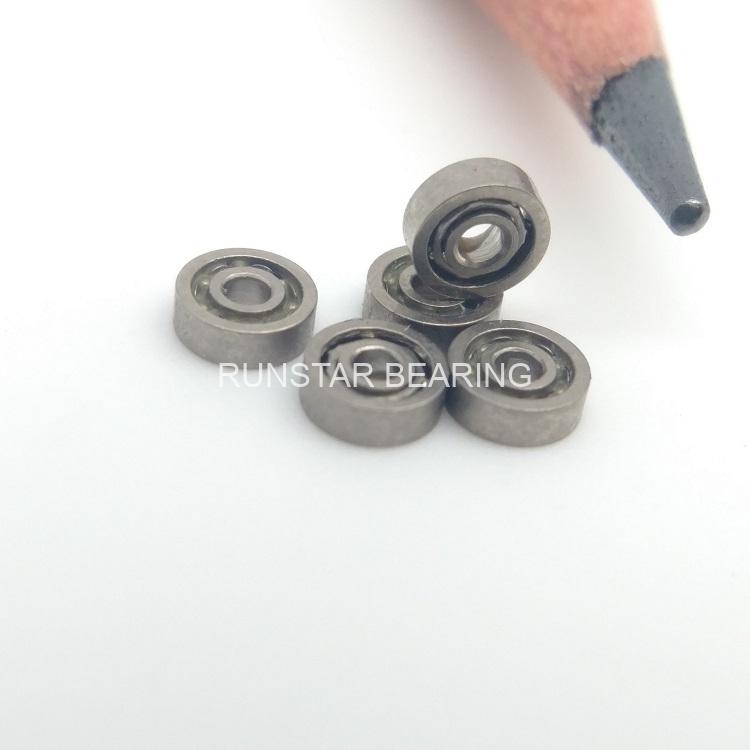

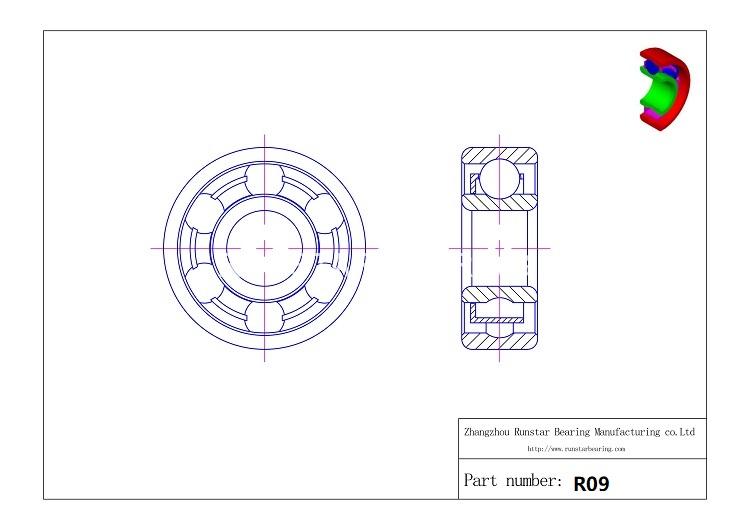

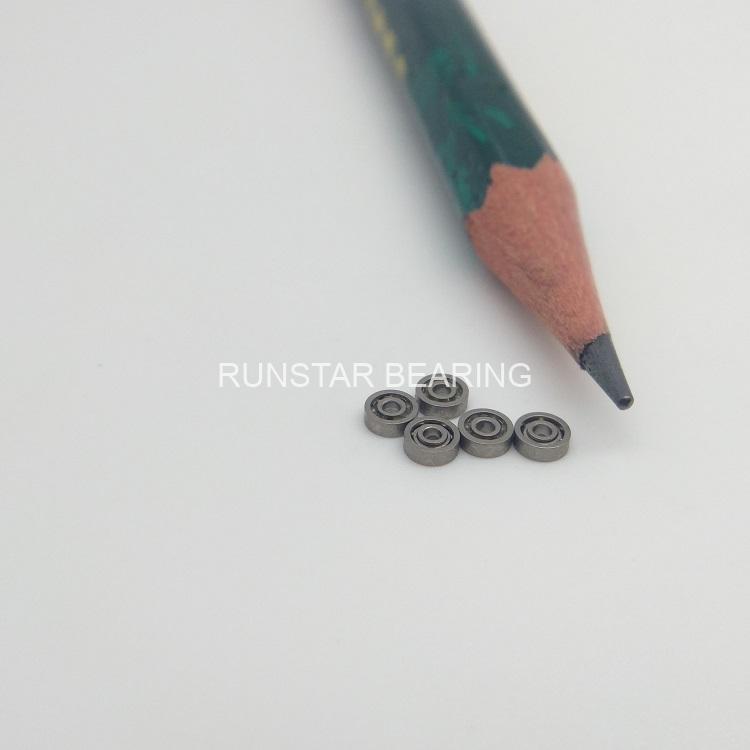

| Part Number | R09 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Open |
| Bore diameter(d) | 1/25″︱1.016mm |
| Outer diameter(D) | 1/8″︱3.175mm |
| Width(B) | 3/64″︱1.191mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 0.635mm |
| BALL QTY | 6 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.05 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 88.98 N |
| Static Load Rating (Cor) | 22.25 N |
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | FAG | TIMKEN |
| R09 | R1-2 | R01 | R09 | 1016 |
