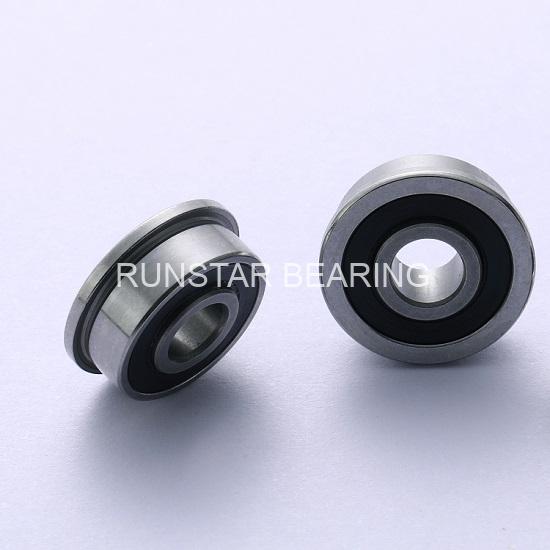

flanged radial ball bearings FR2-2RS EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number FR2-2RS EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubbe seals
Bore diameter(d) 1/8″︱3.175mm
Outer diameter(D) 3/8″︱9.525mm
Flange OD(Df) 0.44″︱11.176mm
Width of outer diameter(C1) 5/32″︱3.967mm
Width  of inner diameter(B1) 3/16″︱4.762mm
Flange thickness (Bf) 0.03″︱0.762mm
radius (rs) 0.3mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.35
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 538 N
Static Load Rating (Cor) 173N
flanged radial ball bearings fr2 2rs ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
FR2 -2RS EE
