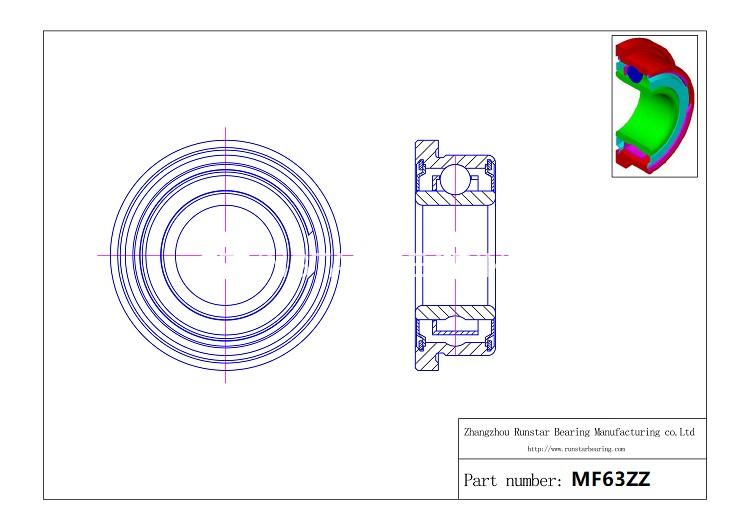

| Part Number | MF63ZZ |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Shields |
| Bore diameter(d) | 3mm |
| Outer diameter(D) | 6mm |
| Flange OD | 7.2mm |
| Width(B) | 2.5mm |
| Flange thickness | 0.6mm |
| radius | 0.1mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 0.8mm |
| BALL QTY | 8 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.28 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 178N |
| Static Load Rating (Cor) | 59 N |
Flanged Bearings is also called flanged ball bearings or flange bearing. Compared with common ball bearings,flanged bearings have a solid steel flange on the outer ring. When there is no connector at one end of the shaft and it needs to be fixed on a parts, the flanged bearings or flanged ball bearings are your best choice. The flanged bearings let the axial posioning become easier more and more,and the bearing housing is no longer needed in application.

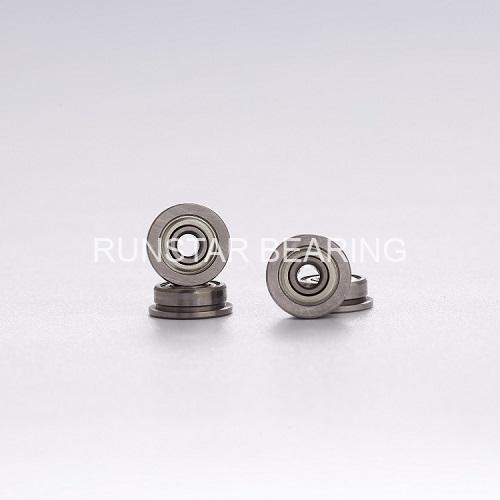

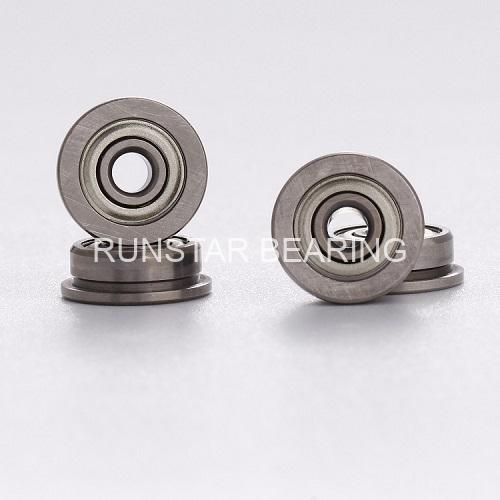

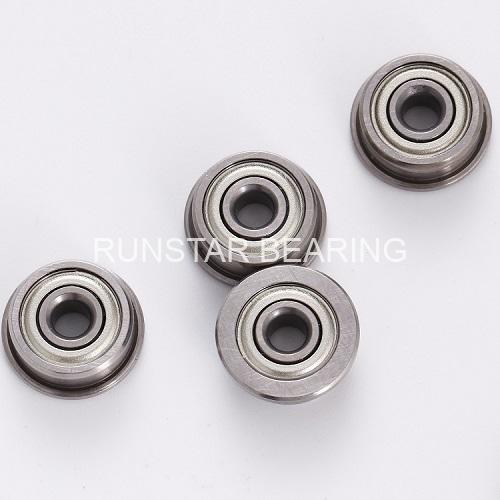

MF63ZZ is a flanged ball bearings with shields. It is with a bore diameter 3mm,and a outer diameter 6mm,and a width 2.5mm, it is a very pop size in market. Runstar is a professional flanged bearings manufacturer in China, .we design and manufacture flanged bearings with a grade from ABEC-1 to ABEC-9,the material of flanged bearings from Runstar can be chrome steel,stainless steel or hybrid ceramic for choice. All flanged bearings from Runstar are strictly controlled under ISO9001:2015,with RoHs and REACH compliance.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| MF63zz | LF-630zz | MF63zz |
