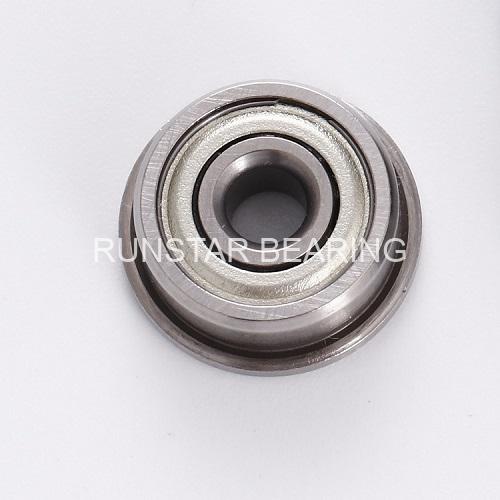

flanged bearing MF93ZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number MF93ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 3mm
Outer diameter(D) 9mm
Flange OD 10.2mm
Width(B) 4mm
Flange thickness 0.8mm
radius 0.15mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 6
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.15
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 485N
Static Load Rating (Cor) 151 N
flanged bearing mf93zz d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
MF93zz RF-930Y52zz MF93zz
