| Part Number | FR168-2RS EE |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Rubber seals |

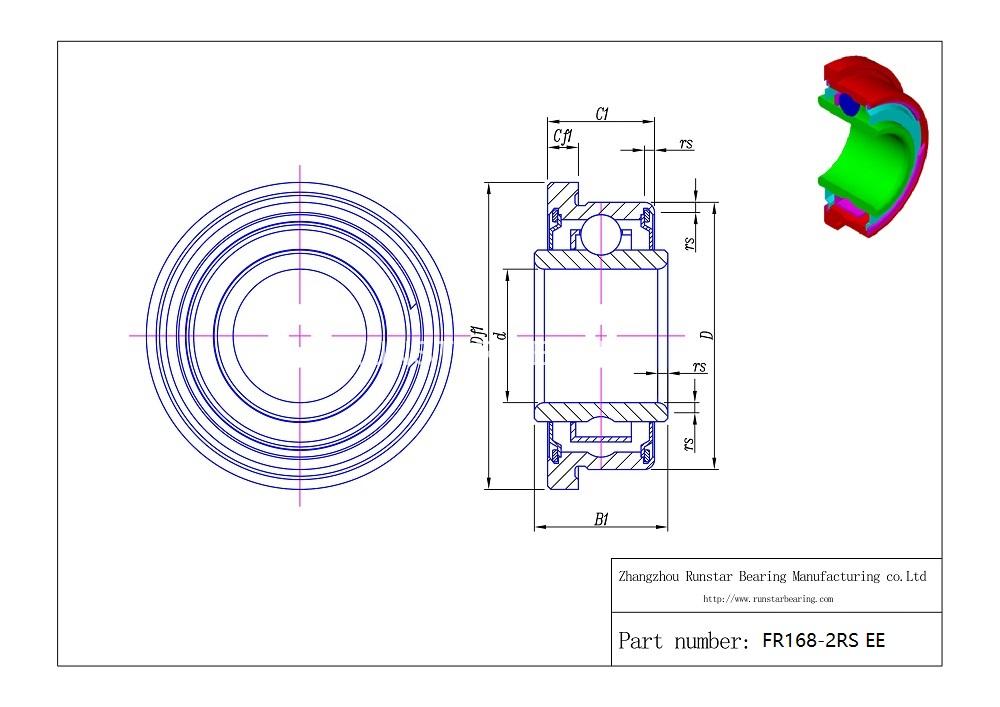

| Bore diameter(d) | 1/4″︱6.35mm |
| Outer diameter(D) | 3/8″︱9.525mm |
| Flange OD(Df) | 0.422″︱10.7188mm |
| Width of outer diameter(C) | 1/8″︱3.175mm |
| Width of inner diameter(B) | 5/32″︱3.969mm |
| Flange thickness (Bf) | 0.036″︱0.9144mm |
| radius (rs) | 0.1mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1mm |
| BALL QTY | 11 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.73 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 315N |
| Static Load Rating (Cor) | 137N |
Flanged Ball Bearings is also called flanged bearings or flange ball bearing. Compared with common ball bearings,flanged ball bearings have a solid steel flange on the outer ring. When there is no connector at one end of the shaft and it needs to be fixed on a parts, the flanged ball bearing or flanged bearings are your best choice. The flange ball bearings let the axial posioning become easier more and more,and the bearing housing is no longer needed in application.

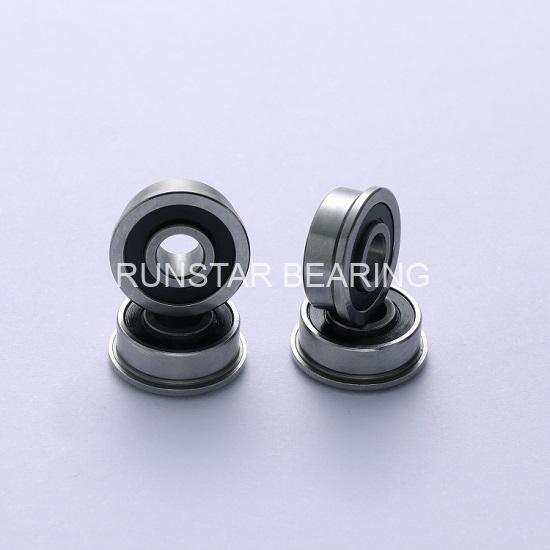

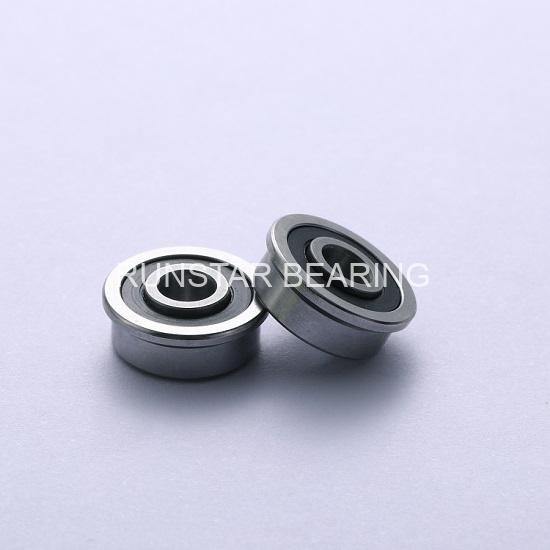

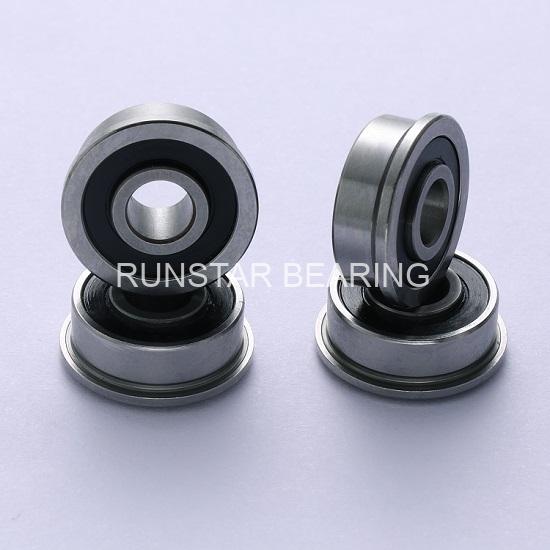

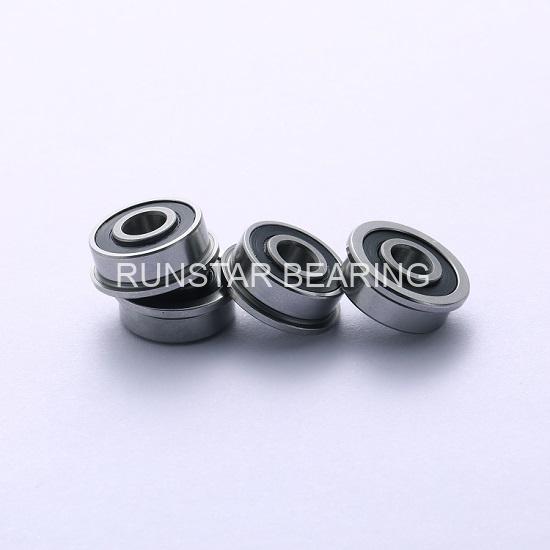

FR168-2RS EE is a flanged ball bearings with rubber seals. It is with a bore diameter 1/4″︱6.35mm,and a outer diameter 3/8″︱9.525mm,and a width 1/8″︱3.175mm, it is a very pop size in market. Runstar is a professional flanged ball bearings manufacturer in China, .we design and manufacture flanged ball bearings with a grade from ABEC-1 to ABEC-9,the material of flanged ball bearings from Runstar can be chrome steel,stainless steel or hybrid ceramic for choice. All flanged ball bearings from Runstar are strictly controlled under ISO9001:2015,with RoHs and REACH compliance.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| FR168-2RS EE |
