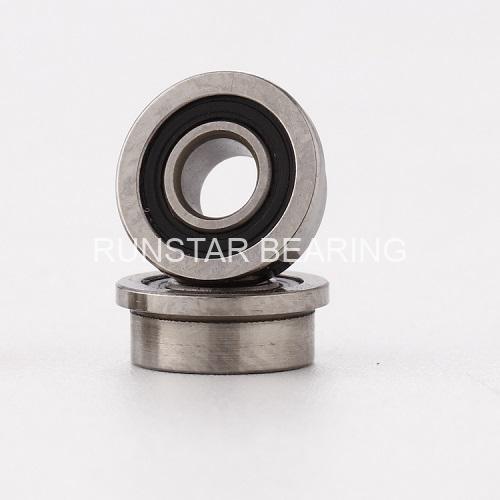

flanged ball bearings F693-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F693-2RS
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 3mm
Outer diameter(D) 8mm
Flange OD 9.5mm
Width(B) 4mm
Flange thickness 0.9mm
radius 0.15mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.2mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.8
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 474N
Static Load Rating (Cor) 144 N

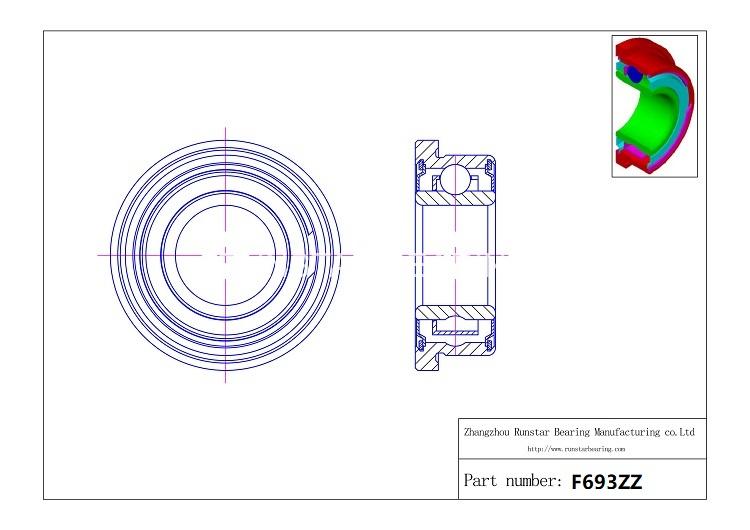

flanged bearing f693zz d

     Flanged Ball Bearings is also called flanged bearings or flange ball bearing. Compared with common ball bearings,flanged ball bearings have a solid steel flange on the outer ring. When there is no connector at one end of the shaft and it needs to be fixed on a parts, the flanged ball bearing or flanged bearings are your best choice. The flange ball bearings let the axial posioning become easier more and more,and the bearing housing is no longer needed in application.

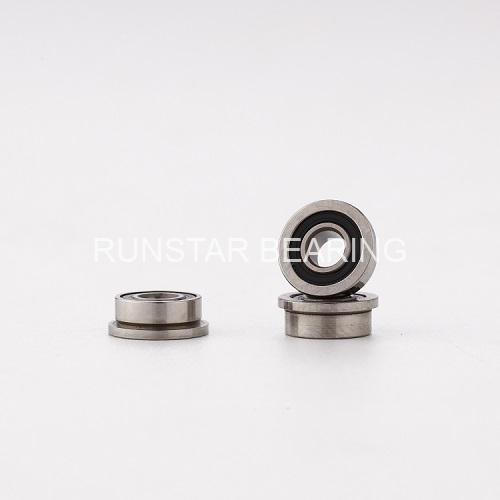

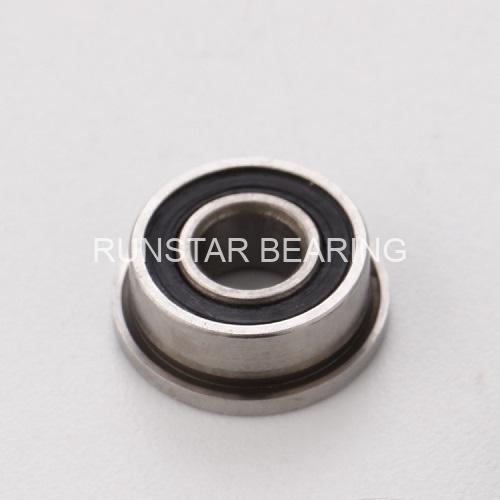

F693-2RS is a flanged ball bearings with rubber seals. It is with a bore diameter 3mm,and a outer diameter 8mm,and a width 4mm, it is a very pop size in market. Runstar is a professional flanged ball bearings manufacturer in China, .we design and manufacture flanged ball bearings with a grade from ABEC-1 to ABEC-9,the material of flanged ball bearings from Runstar can be chrome steel,stainless steel or hybrid ceramic for choice. All flanged ball bearings from Runstar are strictly controlled under ISO9001:2015,with RoHs and REACH compliance.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F693-2RS RF-830-2RS FL693-2RS FX3-2RS F693-2RS F693-2RS
