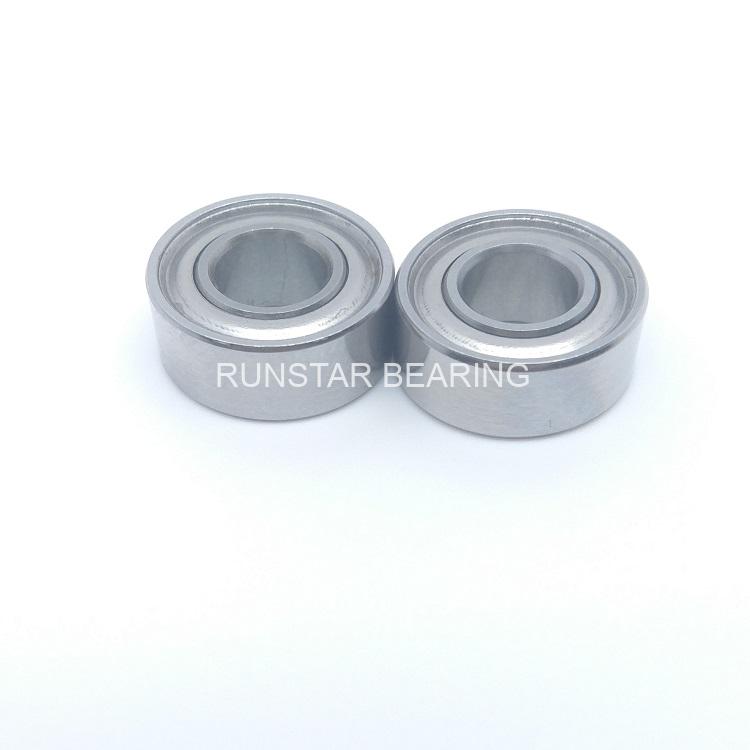

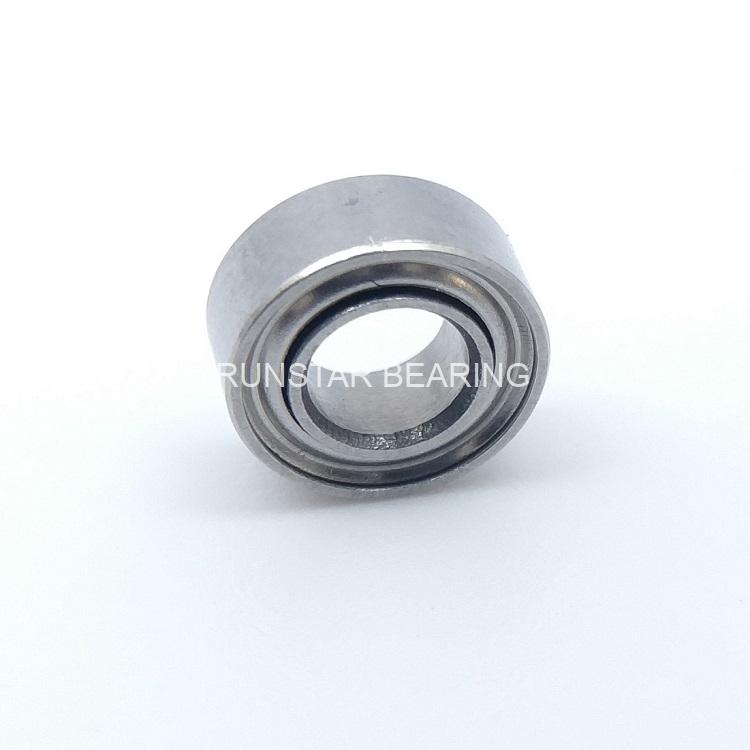

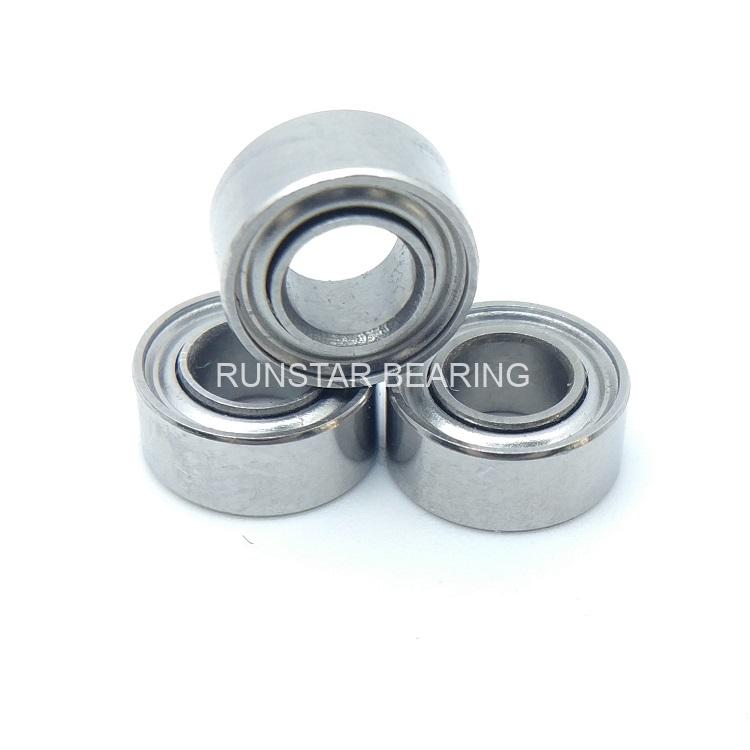

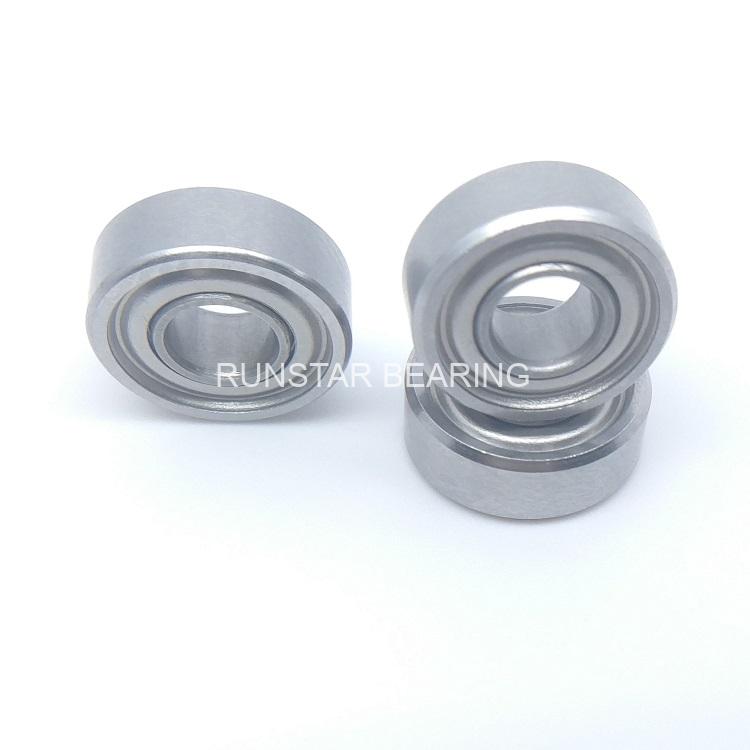

| Part Number | 686ZZ |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Shields |

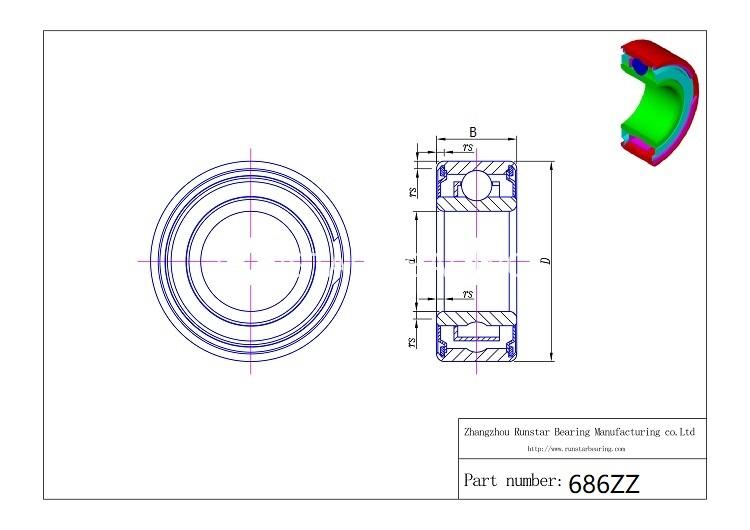

| Bore diameter(d) | 6mm |
| Outer diameter(D) | 13mm |
| Width(B) | 5 mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 2 mm |
| BALL QTY | 8 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 2.68 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 920 N |
| Static Load Rating (Cor) | 354 N |
Runstar Bearing Manufacturing Co.;Ltd is a professional manufacturer of miniature ball bearing and thrust ball bearing,we have passed ISO9001:2015,Reach and RoHs.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| 686ZZ | L-1360ZZ | W686ZZ | 628/6ZZ | 686-2Z | 686ZZ |
