| Part Number | Fingerboard wheels |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | open |
| Bore diameter(d) | 1.5mm |
| Outer diameter(D) | 4mm |
| Width(B) | 2mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1 |
| Clearance | C0 |
| BALL SIZE(mm) | 0.6mm |
| BALL QTY | 6 |
| lubrication | grease or oil |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.14 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 95 N |
| Static Load Rating (Cor) | 26 N |

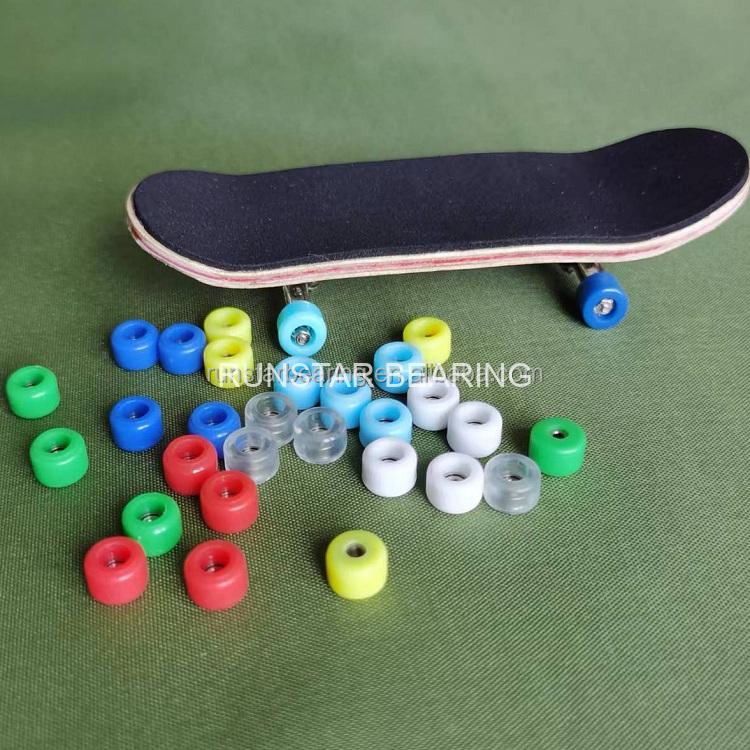

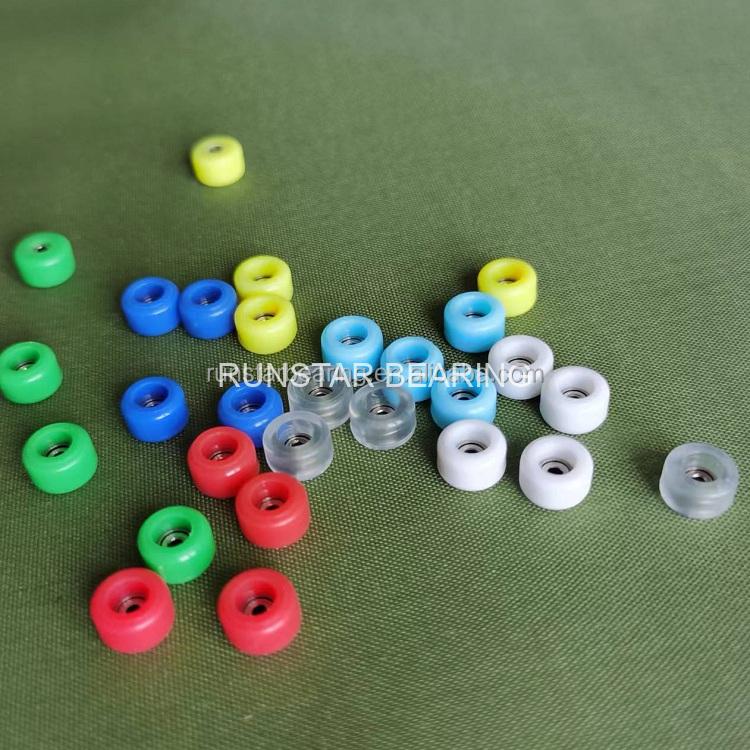

In order to reduce the friction between fingerboard bearings and floor,decrease the voice and prelong the life of it, it is usually need to be coated with PU polyurethane or POM hard plastic in applications.We can make fingerboard wheel according to your drawings and exact requirements,customized fingerboard wheel is available.
Runstar is a professional manufacturer of fingerboard bearings and fingerboard wheels, we specialize in manufacturing high precision fingerboard wheels with bearings for fingerboard, and we have been committed to the R & D and production of high-precision finger skateboard bearings for long time. Different colors and hardness of fingerboard wheels are available in Runstar.
