Part Number F638-2RS
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 8mm
Outer diameter(D) 28mm
Flange OD(Df) mm
Width(B) 9mm
Flange thickness (Bf) 1.5mm
radius (rs) 0.3mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 4.762mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 30.3
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 3879N
Static Load Rating (Cor) 1586N

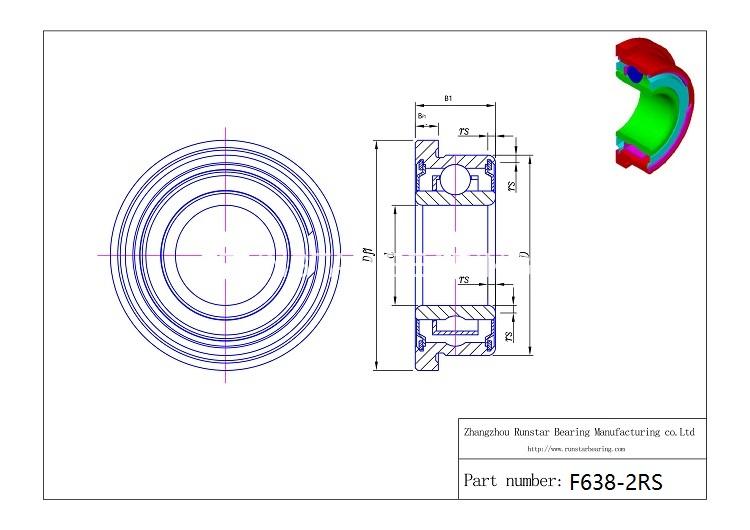

bearing suppliers f638 2rs d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F638-2RS
