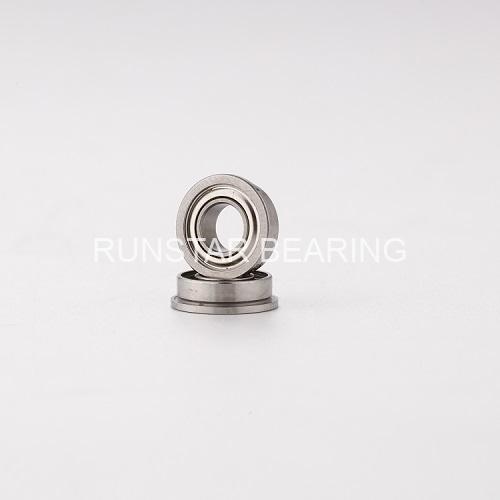

ball bearing manufacturing F686

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F686
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 6mm
Outer diameter(D) 13mm
Flange OD 15mm
Width(B) 3.5mm
Flange thickness 1mm
radius 0.15mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 2mm
BALL QTY 8
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.87
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 920N
Static Load Rating (Cor)  350N
ball bearing manufacturing f686 d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F686 LF-1360 FL686 FAX6 F686 F686
