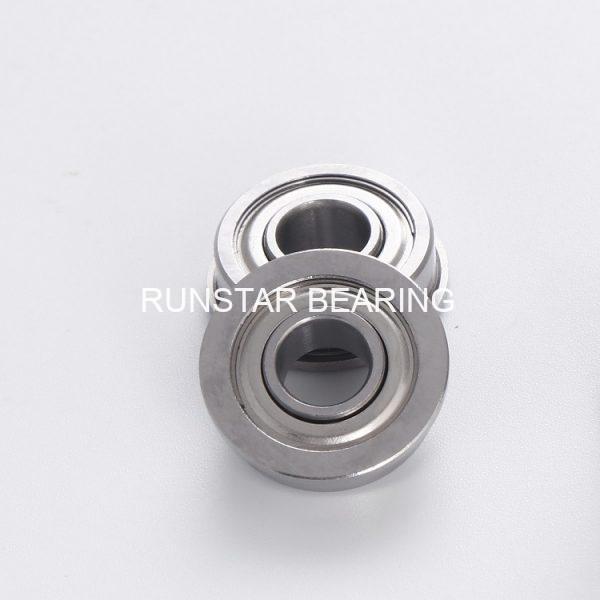

ball-bearing FR6ZZ EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number FR6 EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 3/8″︱9.525mm
Outer diameter(D) 7/8″︱22.225
Flange OD(Df) 0.965″︱24.511mm
Width of outer diameter(C1) 0.2812″︱7.142mm
Width of inner diameter(B1) 0.468″︱11.889mm
Flange thickness (Bf) 0.062″︱1.5748mm
radius (rs) 0.4mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 3.97
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 12.4
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 2834N
Static Load Rating (Cor) 1139N
ball bearing fr6zz ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
FR6 EE
