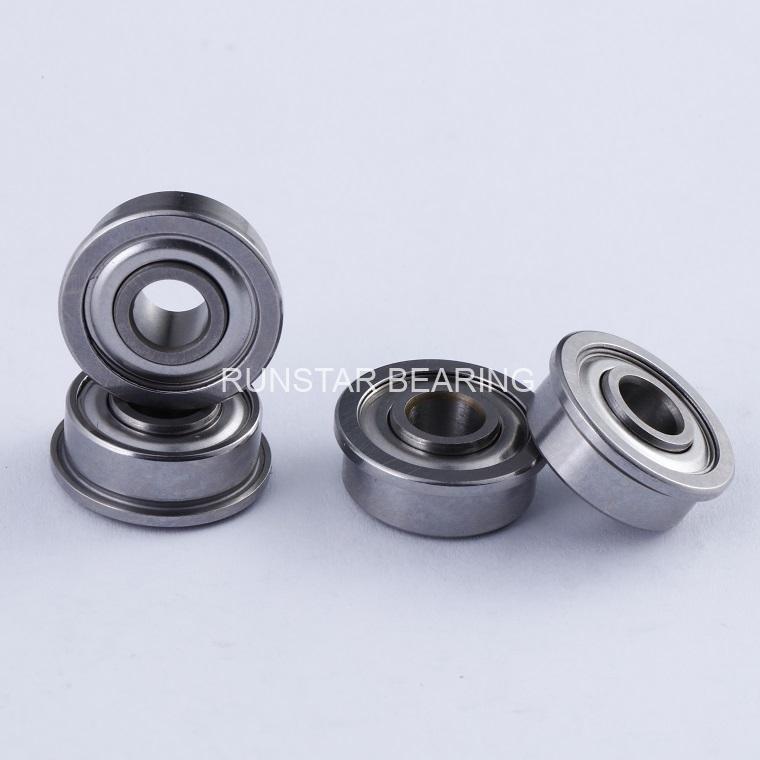

ball bearing flange FR2-6ZZ EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number FR2-6ZZ EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 1/8″︱3.175mm
Outer diameter(D) 3/8″︱9.525mm
Flange OD(Df) 0.422″︱10.7188mm
Width of outer diameter(C) 0.1406″︱3.571mm
Width of inner diameter(B) 0.1719″ | 4.366 mm
Flange thickness (Bf) 0.031″︱0.7874mm
radius (rs) 0.15mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.05
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 542N
Static Load Rating (Cor) 182N
ball bearing flange fr2 6zz ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
FR2-6ZZ EE
