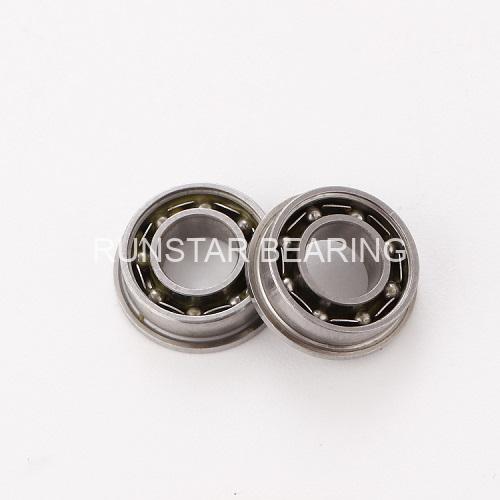

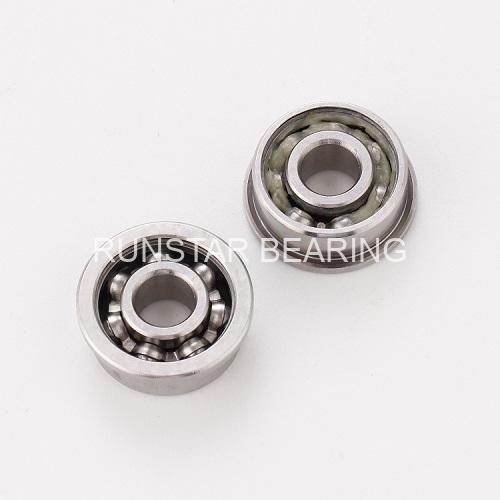

9 ball bearings F679

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F679
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 9mm
Outer diameter(D) 14mm
Flange OD(Df) 15.5mm
Width(B) 3mm
Flange thickness (Bf) 0.8mm
radius (rs) 0.1mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 12
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.35
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 781N
Static Load Rating (Cor) 374N
9 ball bearings f679 d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F679
