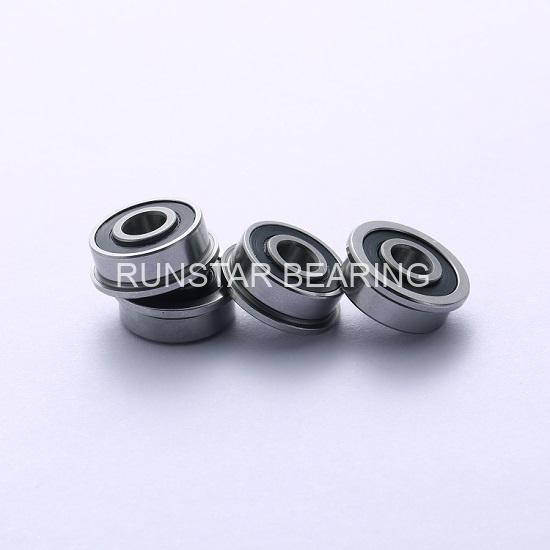

3/16″ ball bearings FR3-2RS EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number FR3-2RS EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 3/16″︱4.762mm
Outer diameter(D) 1/2″︱12.7mm
Flange OD(Df) 0.565″︱14.351mm
Width of outer diemater(C) 5/32″︱3.967mm
Width of inner diameter(B) 3/16″︱4.762mm
Flange thickness (Bf) 0.042″︱1.0668mm
radius (rs) 0.3mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 2.381mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 3.24
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 1107N
Static Load Rating (Cor) 391N
316 ball bearings fr3 2rs ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
FR3-2RS EE
