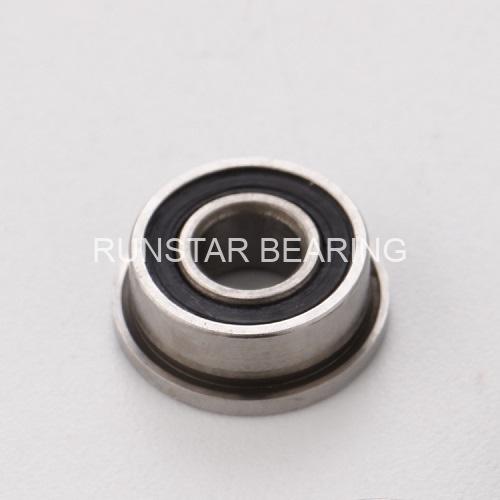

2mm miniature bearings F682-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F682-2RS
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 2mm
Outer diameter(D) 5mm
Flange OD 6.1mm
Width(B) 2.3mm
Flange thickness 0.6mm
radius 0.08mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 0.8 mm
BALL QTY 6
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.2
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 144 N
Static Load Rating (Cor) 40   N
2mm miniature bearings f682 2rs d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F682-2RS LF-520-2RS FL682-2RS FBX2-2RS F682-2RS F682-2RS
