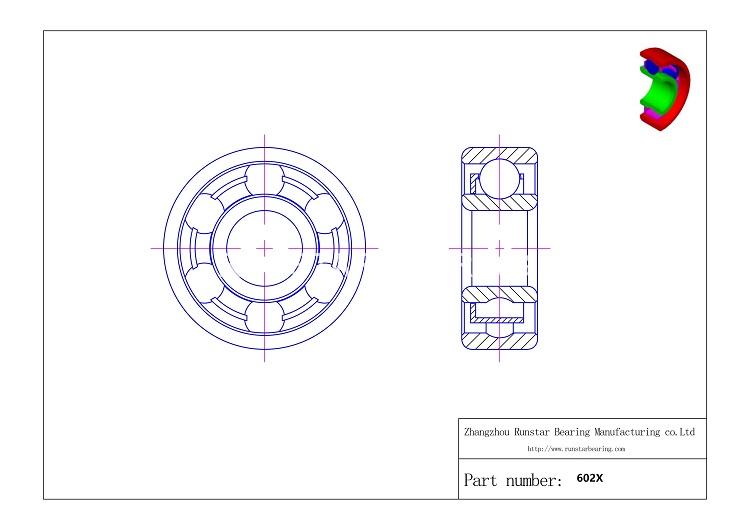

2mm miniature bearings 602X

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 602X
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 2.5mm
Outer diameter(D) 8 mm
Width(B) 2.8  mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588 mm
BALL QTY 6
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.61
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr)  469 N
Static Load Rating (Cor)  142 N

Runstar Bearing Manufacturing Co.;Ltd is a professional manufacturer of miniature ball bearing and thrust ball bearing,we have passed ISO9001:2015,Reach and RoHs.
