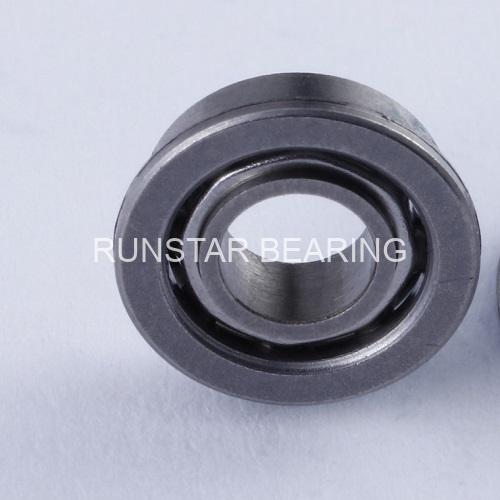

2mm ball bearings F602

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F602
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type OPEN
Bore diameter(d) 2mm
Outer diameter(D) 7mm
Flange OD 8.5mm
Width(B) 2.8mm
Flange thickness 0.7mm
radius 0.15mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.2 mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.50
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 328 N
Static Load Rating (Cor) 103  N
2mm ball bearings f602 d 1

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F602 RF-720 FL602 F602
